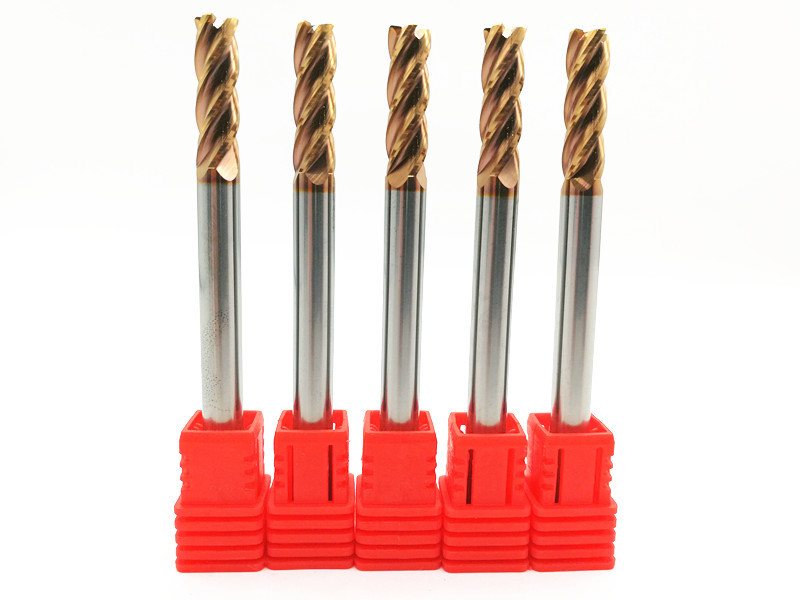

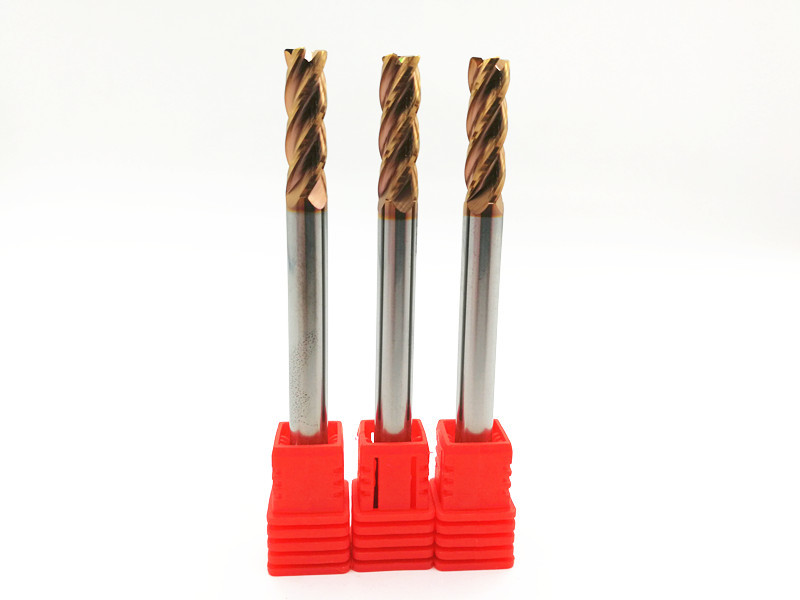

2 rowki Frezy z węglików spiekanych z powłoką HRC55 do frezowania metali
1. Opis produktu
Wybór HRC: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Wybór powłoki: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materiały do cięcia: oryginalna stal, żeliwo, aluminium, miedź, grafit, tworzywa sztuczne,
Tytan, stop, utwardzana stal, stal nierdzewna, HSS itp
2.Wprowadzanie materiałów węglikowych młyna końcowego
| AlTiN | TiAlN | TiSlN | Nano | |
| Twardość (HV) | 3200 | 2800 | 3600 | 42 (GPA) |
| Grubość (UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Temperatura utleniania (°) | 900 | 800 | 1000 | 1200 |
| Współczynnik tarcia | 0.3 | 0.3 | 0,45 | 0.4 |
| Kolor | czarny | Fioletowy | Miedź | niebieski |
3. Nr kodu
| Nr kodu | Diamter re | Długość cięcia L | Długość całkowita L | Cholewka re | Flety Z |
| 2GW1-01002050 | 1 | 3 | 50 | 4 | 2 |
| 2GW1-01504050 | 1.5 | 4 | 50 | 4 | 2 |
| 2GW1-02050500 | 2 | 5 | 50 | 4 | 2 |
| 2GW1-02507050 | 2.5 | 7 | 50 | 4 | 2 |
| 2GW1-03008050 | 3 | 8 | 50 | 4 | 2 |
| 2GW1-04010050 | 4 | 10 | 50 | 4 | 2 |
| 2GW1-04015075 | 4 | 15 | 75 | 4 | 2 |
| 2GW1-04020100 | 4 | 20 | 100 | 4 | 2 |
| 2GW1-05012050 | 5 | 13 | 50 | 6 | 2 |
| 2GW1-06015050 | 6 | 15 | 50 | 6 | 2 |
| 2GW1-06020075 | 6 | 20 | 75 | 6 | 2 |
| 2GW1-06020100 | 6 | 30 | 100 | 6 | 2 |
| 2GW1-06020060 | 8 | 20 | 60 | 8 | 2 |
| 2GW1-08025075 | 8 | 25 | 75 | 8 | 2 |
| 2GW1-08025100 | 8 | 35 | 100 | 8 | 2 |
| 2GW1-010025075 | 10 | 25 | 75 | 10 | 2 |
| 2GW1-010040100 | 10 | 40 | 100 | 10 | 2 |
| 2GW1-012020075 | 12 | 30 | 75 | 12 | 2 |
| 2GW1-012040100 | 12 | 40 | 100 | 12 | 2 |
| 2GW1-014020080 | 14 | 30 | 80 | 14 | 2 |
| 2GW1-014100100 | 14 | 40 | 100 | 14 | 2 |
| 2GW1-016040100 | 16 | 40 | 100 | 16 | 2 |
| 2GW1-018040100 | 18 | 40 | 100 | 18 | 2 |
| 2GW1-020040100 | 20 | 40 | 100 | 20 | 2 |
| 2GW1-06040150 | 6 | 40 | 150 | 6 | 2 |
| 2GW1-08050150 | 8 | 50 | 150 | 8 | 2 |
| 2GW1-010050150 | 10 | 50 | 150 | 10 | 2 |
| 2GW1-012050150 | 12 | 50 | 150 | 12 | 2 |
| 2GW1-014060150 | 14 | 60 | 150 | 14 | 2 |
| 2GW1-016060150 | 16 | 60 | 150 | 16 | 2 |
| 2GW1-018060150 | 18 | 60 | 150 | 18 | 2 |
| 2GW1-020060150 | 20 | 60 | 150 | 20 | 2 |
